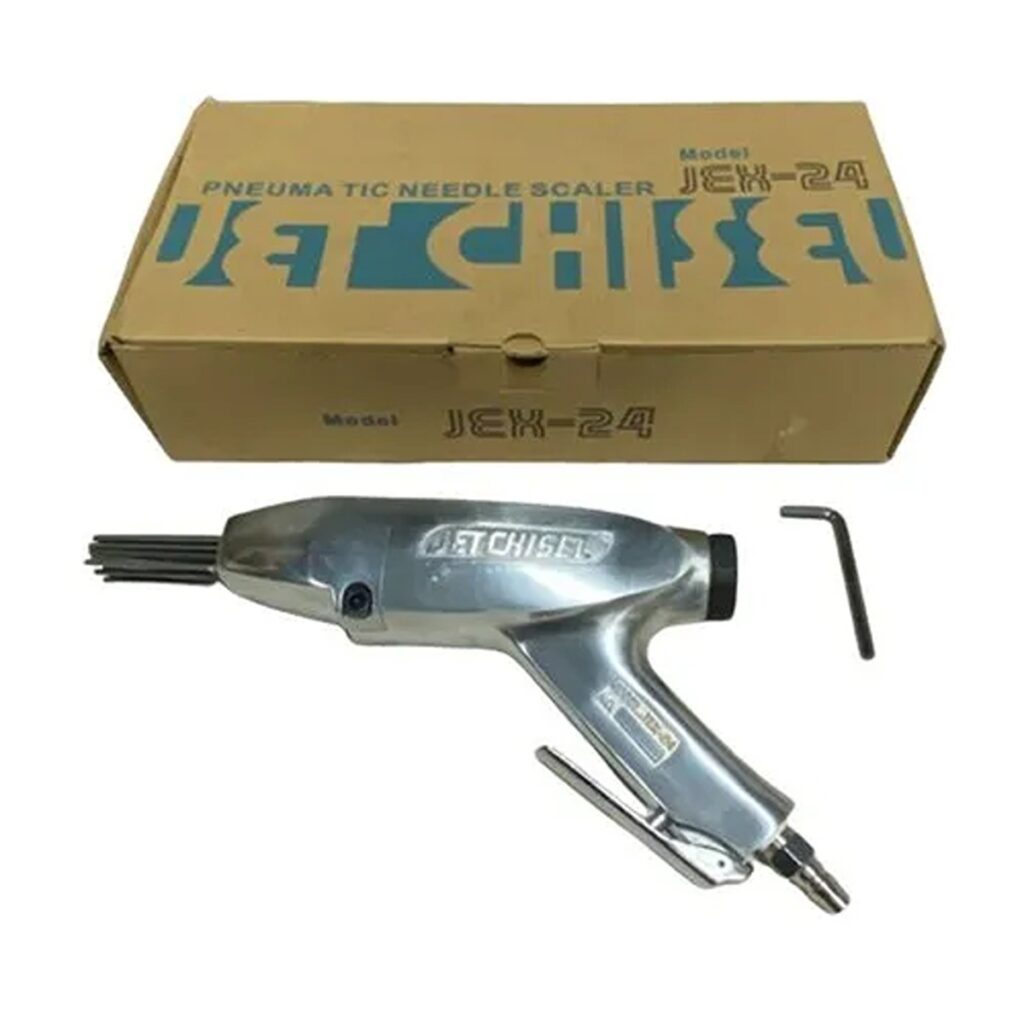

PNEUMATIC JEX-24

he JEX-24 Pneumatic Jet Chisel is a heavy-duty air-powered needle scaler designed for removing rust, paint, welding slag, marine growth, and scale from metal and concrete surfaces. It is widely used in shipyards, marine maintenance, offshore, fabrication, and industrial workshops.

Specifications

• Type: Pneumatic Needle Scaler / Jet Chisel
• Model: JEX-24
• Operating Pressure: 0.6 MPa (6 bar)
• Stroke Speed: 4,000 blows/min
• Air Consumption: 0.27 m³/min
• Needle Capacity:
  • Ø2 × 180 mm – 53 needles
  • Ø3 × 180 mm – 23 needles
• Air Inlet: Rc 3/8″
• Weight: 2.7 kg

Features

• High-performance pneumatic operation for continuous industrial use.
• Automatically follows uneven and curved surfaces.
• Quickly removes rust, corrosion, paint, weld slag, and scale.
• Rugged construction suitable for marine and offshore environments.
• Low maintenance and reliable operation.

Applications

• Ship maintenance and repair
• Steel fabrication
• Bridge maintenance
• Tank cleaning
• Surface preparation before painting
• Foundries and industrial plants
